GL32 LED Marine Light(3-5nm)

GL32 LED Marine Light(3-5nm)

Product Description

GL32 has become the most classical LED Light in the field of marine aid to navigation around the world. Because of its reliability and durability, it has also become a perfect model for all kinds of warning applications. It installs in minutes and requires no maintenance. The optical part is based on polycarbonate lens for better led transformation which can concentrate light to a small specific angel to meet 3-4nm visibility requirements. Robust aluminum body with powder coating provides excellent protection against harsh environments.

It complies with IALA-AISM’s requirements. The service life can be guaranteed with more than 10 years by using high quality LED.

Features & Benefits

Based on LED technology, and its color complies to IALA Recommendations E-200-1
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP67).
Available for both AC and DC conditions.
Lens made from durable, UV-stabilized LEXAN polycarbonate.
Aluminum base with powder painted, corrosion-resistant.
Multiple light elements in the source reduce the chances of a complete blackout which could be caused in case of a single source failure.
All hardware of obstruction lights are made of corrosion resistant metals.
Bird spikes for protection against droppings.
Photocell option for automatic activation at night.
No regular maintenance.
Uses 96% less power than an incandescent light.
With surge protection up to 2KV.
Excellent shock and vibration resistant.
No RF Radiations, EMC Compliant.
Reversed Polarity Protected (DC Type).
Corrosion resistant lamp & housing-suitable for off-shore use.
2 years warranty.

Application

High rise building marking
Telecom tower marking
Road obstruction marking
Navigation aid
Port, dock entrance walkway
Buoy marking
Offshore gas & oil platform
Yacht Clubs
Boat Houses
Piers
Safety & Hazard Prevention
Barge Lights
Mooring Lights
Bridges
Oil Boom Lights

Specifications

Item		GL32
ELECTRICAL CHARACTERISTIC	Visible distance	>3-4nm
	Vertical Divergence	10 Degree
	Horizontal out-put	360 Degree
	LED Color	Red, yellow, white, green or blue
	LED Lifespan	100.000 Hours
OPERATION	Woke mode	Flashing
	Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
	Flash duration	670ms
	Photocell sensitivity	70-100 Lux
POWER SUPPLY	Input voltage	85-265VACm 50/60 Hz; 12VDC; 24VDC; 30-60VDC;
POWER SUPPLY	Power consumption	5W (Steady burning)
MECHANICAL STRUCTURE	Lens	Polycarbonate, UV Stabilize
	Body	Die-casting Aluminum
	IP Ingress	IP67
	Weight	3Kg
	Operating Temperature	-40°C ~ +55°C
	Storage Temperature	-40°C ~ +70°C
	Wire Connection mode	Pre wired
	Relative humidity	0-95% RH non-condensing
	Wind speed	Up to 150mph (240kph)
	Atmospheric Transparency Coefficient	0.85
OTHERS	Warranty	2 years
OTHERS	Optional	Flashing pattern(20--60FPM) Built-in photocell

Mounting dimension (mm)

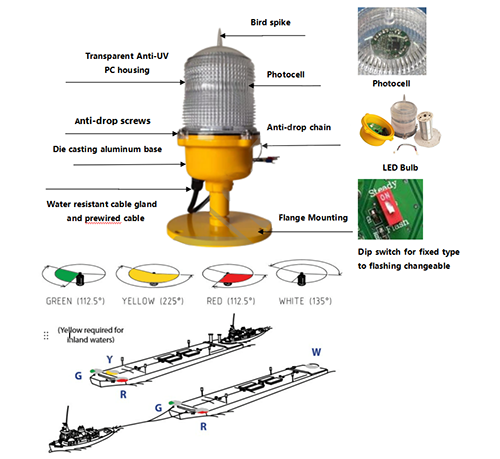

Advantage

Installation and operation

Secure the light on a smooth surface which has enough strength.
When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object.
Make sure the power supply can match the rated power of light before connecting.
Connect the power cable to the prewire of the lamp base according to the marking of the wire.
Check whether the power cables are connected correctly before power on.

Notice

Ensure that the power connection part is correct before using.
Temperature rise when light working is normal phenomenon.
The part of material of products is PC (like lamp cover and lamp shell), so it cannot direct or indirect touch the organic solvent, such as industrial alcohol, banana oil, isotropic alcohol, carbon tetra chloride, cyclohexanone and so on, otherwise, the product will be corrosion.
This product is a sealed structure; Please do not be tampered with by anyone other than registered installer. Once found, we are not warranty.
